參數(shù)規(guī)格

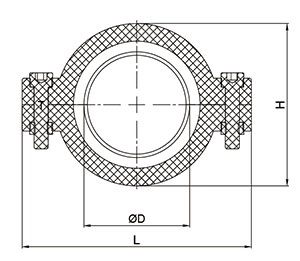

| 規(guī)格 | 外形尺寸 | |||
|---|---|---|---|---|
| ΦD | L(mm) | H | T | |
| 1" | 33.0 | 92.0 | 65.0 | 36.0 |
| 1-1/4" | 42.0 | 105.0 | 76.0 | 45.0 |
| 1-1/2" | 48.0 | 110.0 | 83.0 | 45.0 |
| 2" | 60.0 | 130.0 | 92.0 | 45.0 |
| 2-1/2" | 73.0 | 137.0 | 107.0 | 45.0 |
| 3" | 89.0 | 165.0 | 134.0 | 46.0 |
| 4" | 114.0 | 190.0 | 160.0 | 52.0 |
| 6" | 168.0 | 270.0 | 230.0 | 54.0 |
| 規(guī)格 | 外形尺寸 | |||
|---|---|---|---|---|
| ΦD | L(mm) | H | T | |
| 1" | 33.0 | 92.0 | 65.0 | 36.0 |
| 1-1/4" | 42.0 | 105.0 | 76.0 | 45.0 |
| 1-1/2" | 48.0 | 110.0 | 83.0 | 45.0 |
| 2" | 60.0 | 130.0 | 92.0 | 45.0 |
| 2-1/2" | 73.0 | 137.0 | 107.0 | 45.0 |
| 3" | 89.0 | 165.0 | 134.0 | 46.0 |
| 4" | 114.0 | 190.0 | 160.0 | 52.0 |
| 6" | 168.0 | 270.0 | 230.0 | 54.0 |
