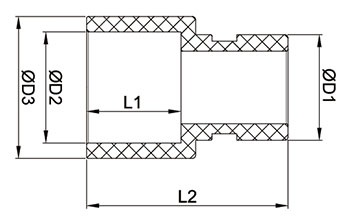

Parameter specifications
| Specification | Overall dimensions | ||||
|---|---|---|---|---|---|
| ΦD1 | ΦD2 | ΦD3 | L1(mm) | L2(mm) | |
| 1" | 32.0 | 33.7 | 44.0 | 28.6 | 62.0 |
| 1-1/4" | 42.0 | 42.4 | 54.0 | 31.8 | 65.0 |
| 1-1/2" | 48.0 | 48.6 | 60.3 | 34.9 | 66.0 |
| 2" | 60.0 | 60.6 | 73.3 | 38.1 | 72.0 |
| 2-1/2" | 73.0 | 73.4 | 89.2 | 44.5 | 78.0 |
| 3" | 89.0 | 89.3 | 105.5 | 47.6 | 82.0 |
| 4" | 114.0 | 114.8 | 133.0 | 57.2 | 92.0 |
| 5" | 141.3 | 141.8 | 162.0 | 66.7 | 100.0 |
| 6" | 168.3 | 168.8 | 192.0 | 76.2 | 112.0 |
| 8" | 219.0 | 219.8 | 252.0 | 101.6 | 142.0 |
