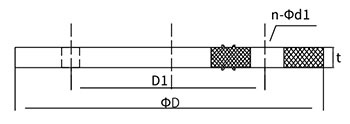

Parameter specifications
| Nominal size Φd | ΦD | D1 | h | n - Φd1 |
|---|---|---|---|---|
| Φ20 | 95 | 65 | 3 | 4-Φ14 |
| Φ25 | 105 | 75 | 3 | 4-Φ14 |
| Φ32 | 115 | 85 | 3 | 4-Φ14 |
| Φ40 | 140 | 100 | 3 | 4-Φ18 |
| Φ50 | 150 | 110 | 3 | 4-Φ18 |
| Φ63 | 165 | 125 | 3 | 4-Φ18 |
| Φ75 | 185 | 145 | 3.5 | 4-Φ18 |
| Φ90 | 200 | 160 | 3.5 | 4-Φ18 |
| Φ110 | 220 | 180 | 3.5 | 4-Φ18 |
| Φ140 | 250 | 210 | 4 | 8-Φ18 |
| Φ160 | 285 | 240 | 4 | 8-Φ22 |
| Φ225 | 340 | 295 | 4.5 | 8-Φ22 |
| Φ280 | 396 | 350 | 4.5 | 12-Φ22 |
| Φ315 | 445 | 400 | 4.5 | 12-Φ22 |
| Φ355 | 505 | 460 | 5 | 16-Φ22 |
| Φ400 | 565 | 515 | 5 | 16-Φ26 |
